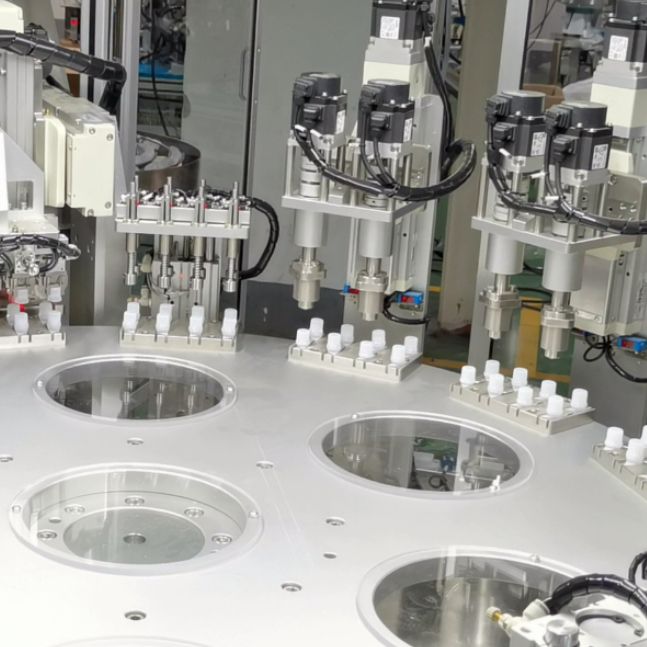

Stainless Steel Cap Screwing Machine for Bottle Capping

Marca:	SENCAN
Número do modelo:	SC-TP-745
Quantidade mínima:	1 conjunto
preço:	Negotiate the price according to actual situation
Condições de pagamento:	T/t, l/c
Capacidade de fornecimento:	3-20 conjuntos

Informações pormenorizadas

Descrição do produto

Informações pormenorizadas

Lugar de origem:

China

Certificação:

CE, ISO9001

Garantia:

1 ano

Material:

Aço inoxidável

Tamanho da máquina host:

L1200*W900*H1670mm

Pressão do ar:

0,6-0,8MPA

Tensão da fonte de alimentação:

AC380V 50/60Hz

Velocidade:

Ajustável

Aplicação:

Captura de garrafas para vários líquidos

Material principal:

Aço inoxidável

Detalhes da embalagem:

Estojo de madeira

Destacar:

stainless steel bottle capping machine

cap screwing machine for bottles

stainless steel cap screwing machine

Descrição do produto

Features

1. Customize rotary or loop type machine for customer’s capacity requirements.

2. Main power from servo motor + reducer unit, which provide intermittent motion and fixtures are in a static during assembling, high accuracy and qualified rate can be achieved.

3. Screw in place precisely, no twist angle and twist broken occur.

4. Does not destroy appearance of product, high qualified rate performed.

5. Option screw force detector for torque requirements.

6. Detection after each assembly process, 100% real qualified products.

7. All part made of stainless steel or aluminum alloy, in accordance with GMP requirements.

8. PLC control system, touch screen HMI operation.

9. Simple maintenance easy operation. No high technical requirement for Operator.

10. Easy maintenance of spare parts, short time replacement.

Properties

Applicable products	Parts require screw fasten assembling, jujce cap , daily cap
Production speed	2500-10000pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 98%(depend on semi-product quality)
Rate of operation rate	Above 95%
Power source	AC380V, 50Hz, 3kw/hr
Dimension	Varied with different product and output
Weight	About 1500kg
Operator	1set/person
